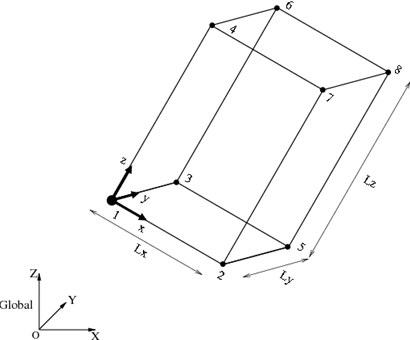

A block shape in a general configuration as shown in Figure 1 can be defined by the position and the orientation of the reference frame attached to one of the vertices and the length of each side (Lx, Ly, Lz). If the position coordinate and the orientation matrix of the reference frame are r and R, respectively, then the coordinates of the vertices are obtained by the following equation:
where p0i is the coordinate of the i-th vertex in the basic configuration. If the coordinates of the vertices are obtained, we can make the block shape by combining six polygons using patch
command in the same way as in the last section.

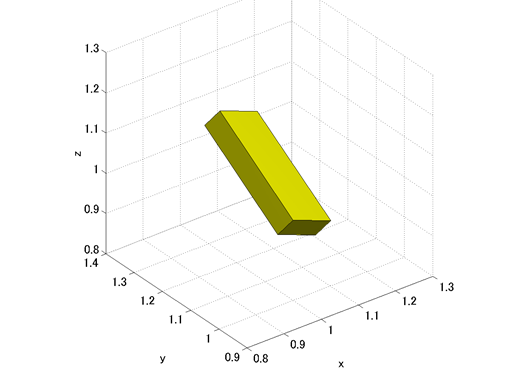

A MATLAB script to draw a block shape in a general configuration is shown in Code 1. The result of the drawing by this script is shown in Figure 2. Function eulerXYZ()
used in the script is a function that converts XYZ Euler angles to the corresponding rotation matrix and is defined as in Code 2.
% make_block_general.m clear; close all; % Reference position r = [1; 1; 1]; % Reference orientation R = eulerXYZ(-pi/3, 0, pi/6); % Side lengths Lx = 0.15; Ly = 0.05; Lz = 0.30; % Vertices vertices_0 = [ 0, 0, 0; % #1 Lx, 0, 0; % #2 0, Ly, 0; % #3 0, 0, Lz; % #4 Lx, Ly, 0; % #5 0, Ly, Lz; % #6 Lx, 0, Lz; % #7 Lx, Ly, Lz]; % #8 vertices = r' + vertices_0*R'; % Faces faces = [ 1, 2, 5, 3; % #1 1, 3, 6, 4; % #2 1, 4, 7, 2; % #3 4, 7, 8, 6; % #4 2, 5, 8, 7; % #5 3, 6, 8, 5]; % #6 % Draw patch figure(1); h = patch('Faces', faces, 'Vertices', vertices, 'FaceColor', 'y'); % Axes settings xlabel('x'); ylabel('y'); zlabel('z'); axis vis3d equal; view([-37.5, 30]); camlight; grid on; xlim([0.8, 1.3]); ylim([0.9, 1.4]); zlim([0.8, 1.3]);
function R = eulerXYZ(a1, a2, a3) % Convert XYZ Euler angles to rotation matrix R1 = [ 1, 0, 0; 0, cos(a1), -sin(a1); 0, sin(a1), cos(a1)]; R2 = [ cos(a2), 0, sin(a2); 0, 1, 0; -sin(a2), 0, cos(a2)]; R3 = [ cos(a3), -sin(a3), 0; sin(a3), cos(a3), 0; 0, 0, 1]; R = R1*R2*R3; end
